| Applicable Material | | Cast Iron | | Grade | SC10 |
| Application | | Ext 45° App 90° Square | Ext 45°App Face&Turn 90°Square | Ext 75° App 90° Square | Ext 75° App Face 90° Square | Inserts | Int 75° App 90° Square | | Min D.O.C. | 0.1 mm |

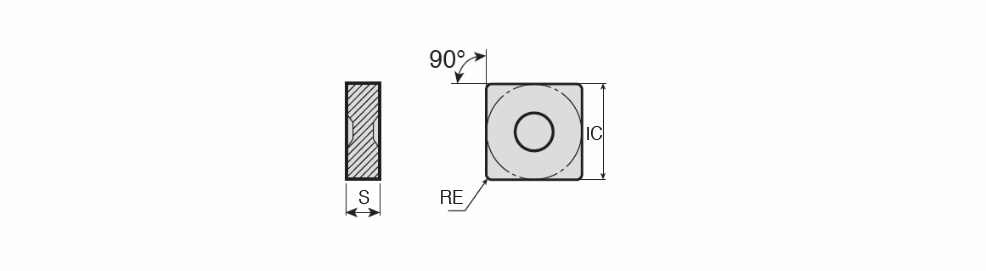

| Corner Radius (RE) | 1.6 mm | Depth of Cut Maximum (APMX) | 3 mm |
| Cutting Edge Length (L) | 12.7 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Thickness (S) | 7.94 mm | Max. Turning Feed (ft(max)) | 0.35 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
| Coating | Al2O3+TiN | Unit | M |
Product Features

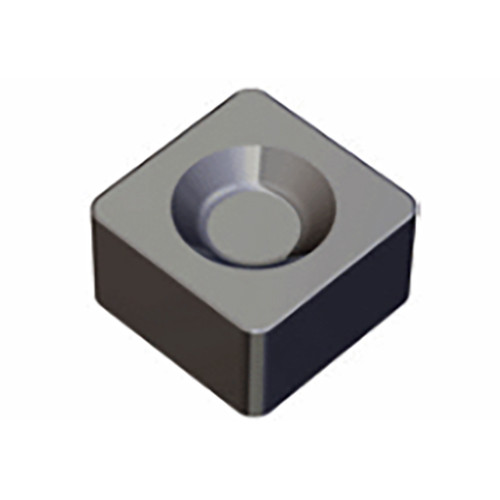

| Family Description | Negative Square ground Ceramic Dimple inserts for cast iron roughing | FamilyName | SNGX-CERAMIC |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0050
Name
Turning Indexable Inserts
FamilyName
SNGX-CERAMIC
BrandName
Taegutec
