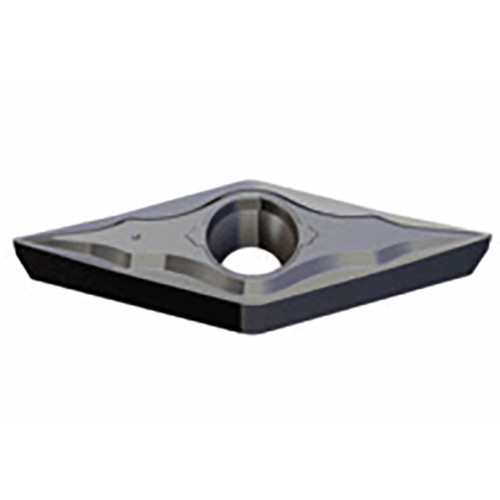

VBGT 160402 SA TT5080
Positive ground 35° Rhombic inserts from finishing to medium machining of small components
Price: Log in For Price
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Grade | TT5080 |
| Application | | Ext 117.5° App 35° Diamond | Ext 72.5° App 35° Diamond | Ext 93° App 35° Diamond | Ext 93° App Sleeve 35° Diamond | Ext 95° App Shift 35°Diamond | Inserts | Int 100° App 70° Diamond | Int 108° App 35° Diamond | Int 117.5 App 35° Diamond | Int 142° App 35° Diamond | Int 93° App 35° Diamond | Tools for Swiss Machines | Y Axis holders | | Min D.O.C. | 0.2 mm |

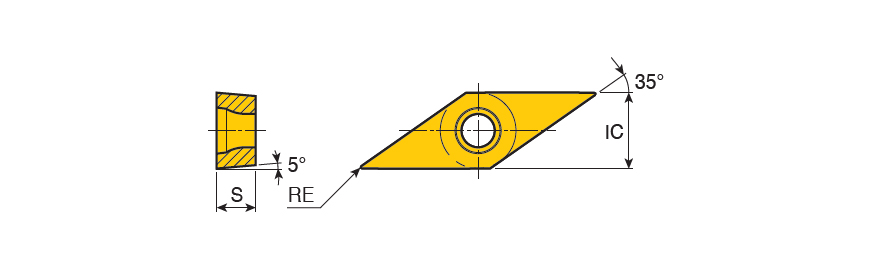

| Corner Radius (RE) | 0.2 mm | Depth of Cut Maximum (APMX) | 1.5 mm |
| Cutting Edge Length (L) | 16.6 mm | Min. Turning Feed (ft(min)) | 0.02 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN+TiN | Unit | M |
Product Features
| Family Description | Positive ground 35° Rhombic inserts from finishing to medium machining of small components | FamilyName | VBGT-SA |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0115
Name
Turning Indexable Inserts
FamilyName
VBGT-SA
BrandName
Taegutec
