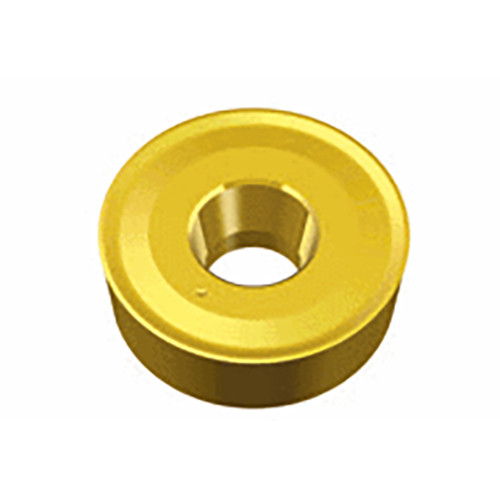

RCMX 250700 TT7015

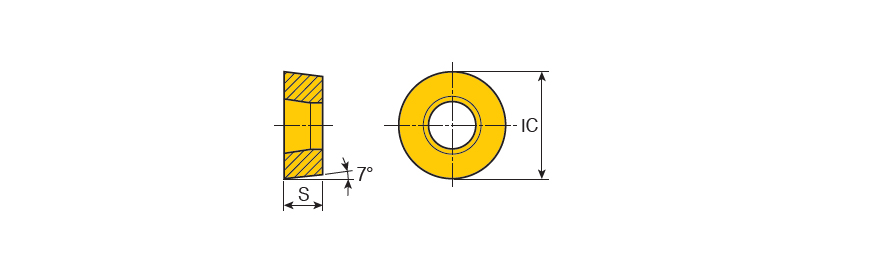

Positive Round inserts with 7° clearance angle for high feed roughing of steel, stainless steel and cast iron
Price: Log in For Price
| Applicable Material | | Cast Iron | | Min D.O.C. | 4 mm |
| Application | | Ext Neutral Round | Ext Profile Round | Inserts | | Depth of Cut Maximum (APMX) | 12 mm |
| Insert Thickness (S) | 7.94 mm | Min. Turning Feed (ft(min)) | 0.55 mm/rev |
| Inscribed Circle Diameter (IC) | 25 mm | Max. Turning Feed (ft(max)) | 1.2 mm/rev |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3 | Body Material | Carbide |
| Grade | TT7015 | Unit | M |
| Fixing Hole Diameter (D1) | 7.18 mm |
Product Features
| Family Description | Positive Round inserts with 7° clearance angle for high feed roughing of steel, stainless steel and cast iron | FamilyName | RCMX. |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0550
Name
Turning Indexable Inserts
FamilyName
RCMX.
BrandName
Taegutec
