| Applicable Material | | Cast Iron | | Grade | TT7015 |
| Application | | Ext 75° App 100° Diamond | Ext 75° App Face 100° Diamond | Ext 95° App 80°Diamond | Inserts | Int 95° App 80° Diamond | | Min D.O.C. | 2 mm |

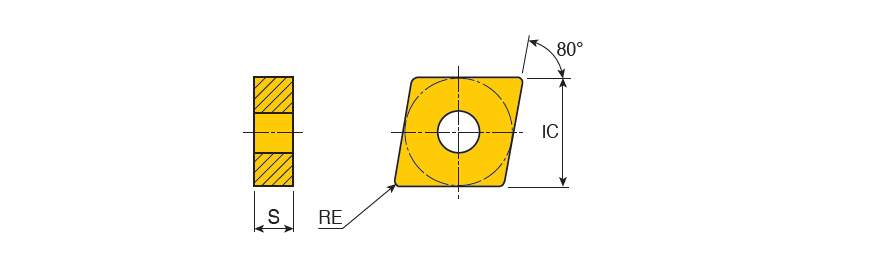

| Corner Radius (RE) | 1.2 mm | Depth of Cut Maximum (APMX) | 10 mm |
| Cutting Edge Length (L) | 19.3 mm | Min. Turning Feed (ft(min)) | 0.15 mm/rev |
| Insert Thickness (S) | 6.35 mm | Max. Turning Feed (ft(max)) | 0.7 mm/rev |
| Inscribed Circle Diameter (IC) | 19.05 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3 | Unit | M |
Product Features
| Family Description | Negative 80° Rhombic inserts without chip former for cast irons & short-chipped materials | FamilyName | CNMA |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0318
Name
Turning Indexable Inserts
FamilyName
CNMA
BrandName
Taegutec
