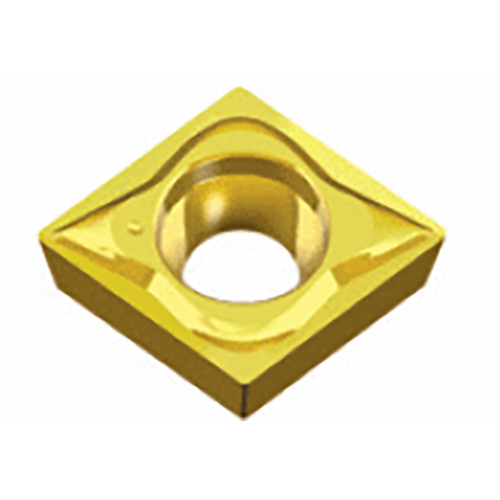

CCMT 09T302 FA TT5080
Positive 80° Rhombic inserts for super-finishing of steels, stainless steels and exotic materials with 7° clearance angle and excellent chip control
Price: Log in For Price
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 4.4 mm |
| Application | | Ext 90° App 80° Diamond | Ext 95° App 80°Diamond | Ext 95° App Sleeve 80° Diamond | Inserts | Int 95° App 80° Diamond | Tools for Swiss Machines | | Min D.O.C. | 0.1 mm |

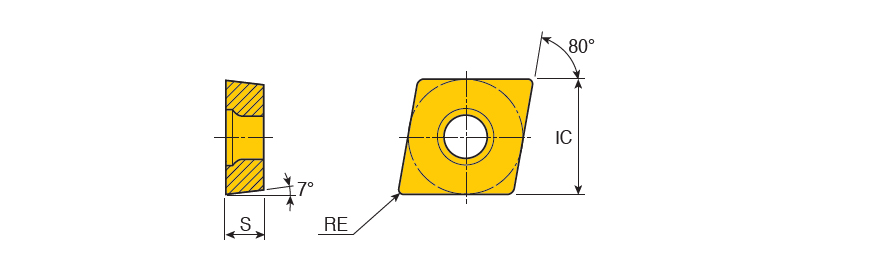

| Corner Radius (RE) | 0.2 mm | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 9.7 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Insert Thickness (S) | 3.97 mm | Max. Turning Feed (ft(max)) | 0.15 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN+TiN | Unit | M |
| Grade | TT5080 |
Product Features
| Family Description | Positive 80° Rhombic inserts for super-finishing of steels, stainless steels and exotic materials with 7° clearance angle and excellent chip control | FamilyName | CCMT-FA |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0050
Name
Turning Indexable Inserts
FamilyName
CCMT-FA
BrandName
Taegutec
