CCMT 060204 FG TT5080

Name: CCMT 060204 FG TT5080
Brand: TTURN
SKU: TTK5523025
Price: 345.00 INR
Availability: InStock

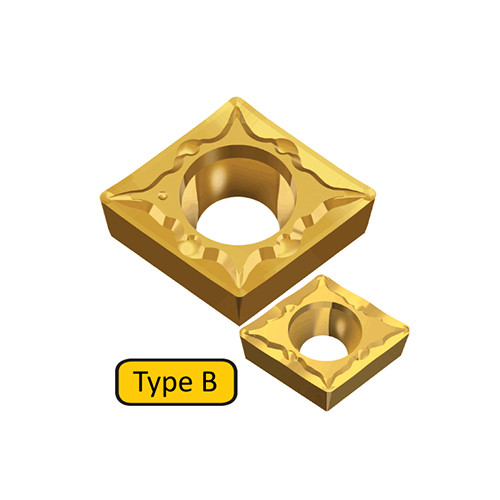

Positive 80° Rhombic inserts for finish to medium light applications of steels & stainless steels with 7° clearance angle & excellent chip control

Item # TTK5523025

Brand: Taegutec

Mfr#: 5523025

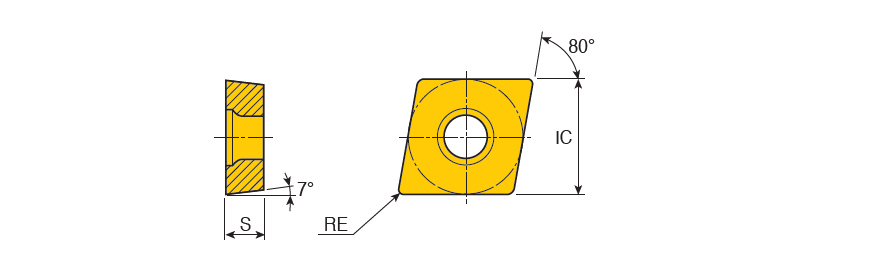

Applicable Material	\| Stainless Steel \| Super-Alloys / Titanium \|	Fixing Hole Diameter (D1)	2.8 mm
Application	\| Ext 90° App 80° Diamond \| Ext 95° App 80°Diamond \| Ext 95° App Sleeve 80° Diamond \| Inserts \| Int 95° App 80° Diamond \| Tools for Swiss Machines \|	Min D.O.C.	0.3 mm
Corner Radius (RE)	0.4 mm	Depth of Cut Maximum (APMX)	1.5 mm
Cutting Edge Length (L)	6.3 mm	Min. Turning Feed (ft(min))	0.05 mm/rev
Insert Thickness (S)	2.38 mm	Max. Turning Feed (ft(max))	0.15 mm/rev
Inscribed Circle Diameter (IC)	6.35 mm	Measurement Type	Metric
Cutting Edge Material	Carbide	Body Material	Carbide
Coating	TiAlN+TiN	Unit	M
Grade	TT5080

Product Features

Family Description	Positive 80° Rhombic inserts for finish to medium light applications of steels & stainless steels with 7° clearance angle & excellent chip control	FamilyName	CCMT-FG
COO	S.KOREA	BrandName	Taegutec

Weight per item

0.0021

Name

Turning Indexable Inserts

FamilyName

CCMT-FG

BrandName

Taegutec
