| Applicable Material | | Steel | Stainless Steel | | Grade | TT9020 |
| Application | | Ext 90° App 80° Diamond | Ext 95° App 80°Diamond | Ext 95° App Sleeve 80° Diamond | Inserts | Int 95° App 80° Diamond | Tools for Swiss Machines | | Min D.O.C. | 0.1 mm |

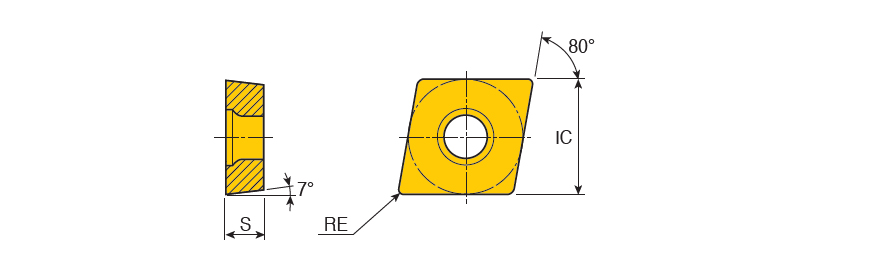

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 2.4 mm |
| Cutting Edge Length (L) | 6.4 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Insert Thickness (S) | 2.38 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN | Unit | M |
Product Features

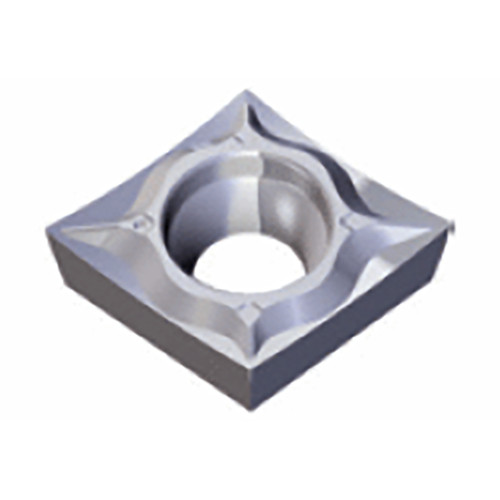

| Family Description | Positive ground 80° Rhombic inserts for finishing to medium machining of small components | FamilyName | CCGT-SA |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0021
Name
Turning Indexable Inserts
FamilyName
CCGT-SA
BrandName
Taegutec
