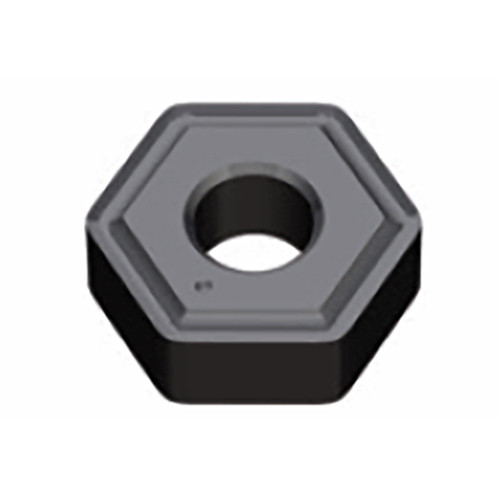

HNMG 050408 SU TT5100
Negative 120° Hexagonal inserts for exotic materials of stainless steels, super alloys and low carbon steels with sharp geometry to minimize built-up edge
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | | Grade | TT5100 |
| Application | | Ext 45° App 120° Hxagonal | Inserts | Int 45° App 120° Hexagonal | | Min D.O.C. | 0.5 mm |

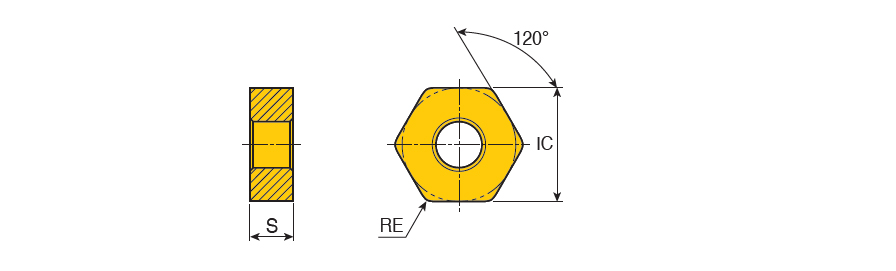

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 3.5 mm |
| Cutting Edge Length (L) | 6.2 mm | Min. Turning Feed (ft(min)) | 0.15 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
Product Features
| Family Description | Negative 120° Hexagonal inserts for exotic materials of stainless steels, super alloys and low carbon steels with sharp geometry to minimize built-up edge | FamilyName | HNMG-SU |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0093
Name
Turning Indexable Inserts
FamilyName
HNMG-SU
BrandName
Taegutec
