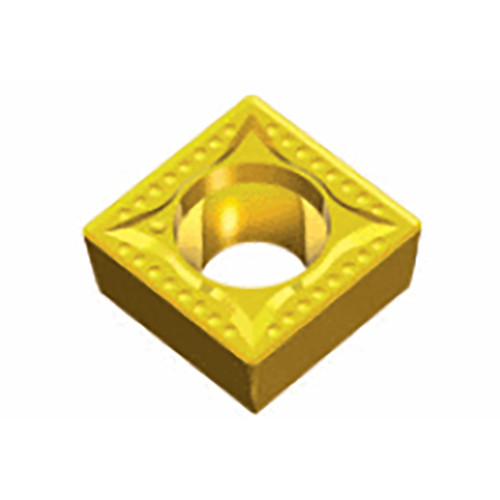

SCMT 09T308 MT TT8020

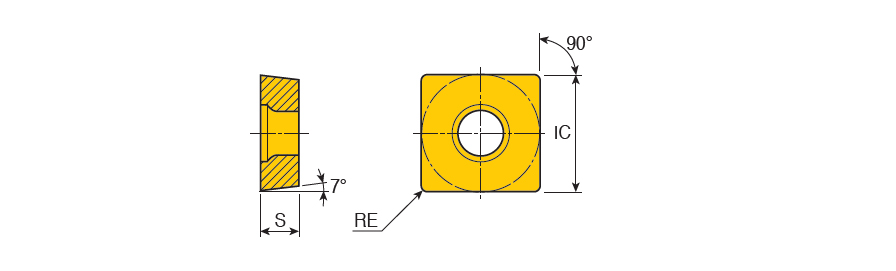

Positive Square inserts for medium to medium rough applications of steel, stainless steel and cast iron with 7° clearance angle
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 4.4 mm |
| Application | | Ext 45° App 90° Square | Ext 45°App Face&Turn 90°Square | Inserts | Int 75° App 90° Square | | Min D.O.C. | 1 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 3.5 mm |
| Cutting Edge Length (L) | 9.52 mm | Min. Turning Feed (ft(min)) | 0.13 mm/rev |
| Insert Thickness (S) | 3.97 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN | Unit | M |
| Grade | TT8020 |
Product Features
| Family Description | Positive Square inserts for medium to medium rough applications of steel, stainless steel and cast iron with 7° clearance angle | FamilyName | SCMT-MT |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0046
Name
Turning Indexable Inserts
FamilyName
SCMT-MT
BrandName
Taegutec
