TCMT 090208 MT TT5100

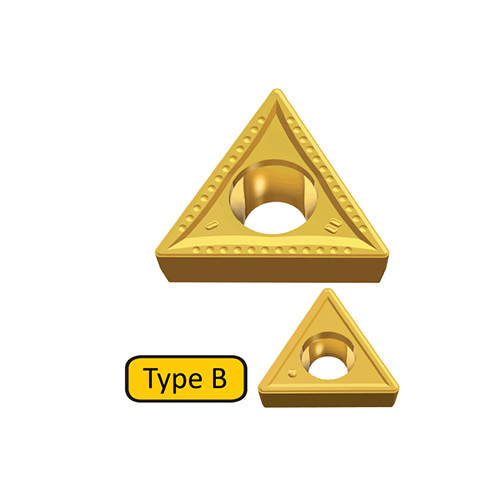

Positive Triangular inserts for medium to medium rough applications of steel, stainless steel & cast iron with 7° clearance angle
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | | Grade | TT5100 |
| Application | | Ext 91° App 60° Triangle | Ext 91° App Face 60° Triangle | Ext 93° App 60° Triangle | Inserts | Int 91° App 60° Triangle | Tools for Swiss Machines | | Min D.O.C. | 0.8 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 9.6 mm | Min. Turning Feed (ft(min)) | 0.13 mm/rev |
| Insert Thickness (S) | 2.38 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 5.56 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
Product Features
| Family Description | Positive Triangular inserts for medium to medium rough applications of steel, stainless steel & cast iron with 7° clearance angle | FamilyName | TCMT-MT |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0022
Name
Turning Indexable Inserts
FamilyName
TCMT-MT
BrandName
Taegutec
