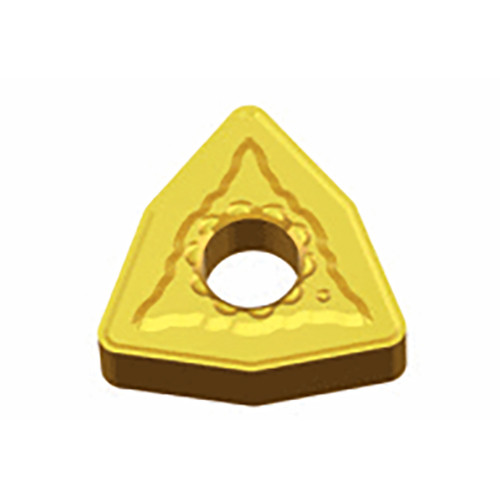

WNMG 080412 RT TT5100
Negative 80° Trigon inserts for rough machining of steels & cast irons with very strong rake geometry
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | | Grade | TT5100 |
| Application | | Ext 95° App 80°Trigon | Inserts | Int 95° App 80° Trigon | | Min D.O.C. | 2.5 mm |
| Corner Radius (RE) | 1.2 mm | Depth of Cut Maximum (APMX) | 4 mm |
| Cutting Edge Length (L) | 8.7 mm | Min. Turning Feed (ft(min)) | 0.25 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.7 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
Product Features
| Family Description | Negative 80° Trigon inserts for rough machining of steels & cast irons with very strong rake geometry | FamilyName | WNMG-RT |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0108
Name
Turning Indexable Inserts
FamilyName
WNMG-RT
BrandName
Taegutec
