| Applicable Material | | Steel | Stainless Steel | | Grade | TT5100 |
| Application | | Ext 62.5° App 55° Diamond | Ext 93° App 55°Diamond | Inserts | Int 100° App 70° Diamond | Int 93° App 55° Diamond | | Min D.O.C. | 1.5 mm |

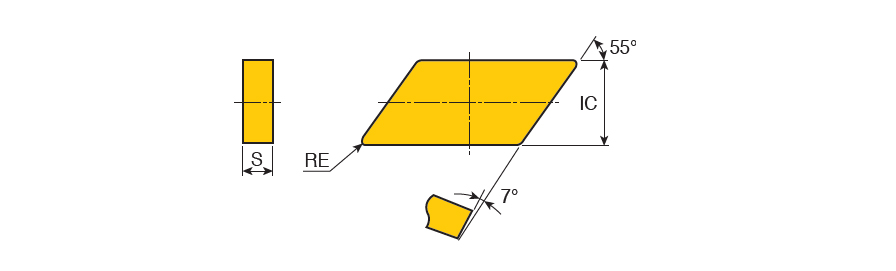

| Corner Radius (RE) | 0.5 mm | Depth of Cut Maximum (APMX) | 5 mm |
| Cutting Edge Length (L) | 19.72 mm | Min. Turning Feed (ft(min)) | 0.15 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.35 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
Product Features

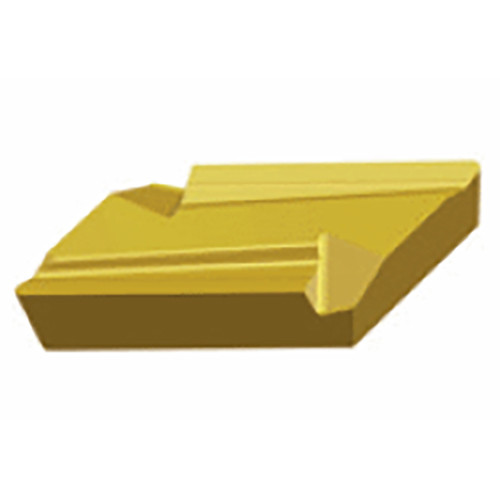

| Family Description | Negative single-side 55° Parallelogram inserts for profiling with positive cutting edges | FamilyName | KNUX R/L-11 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0149
Name
Turning Indexable Inserts
FamilyName
KNUX R/L-11
BrandName
Taegutec
