| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | KP300 |
| Application | | Ext 91° App 60° Triangle | Ext 91° App Face 60° Triangle | Ext 93° App 60° Triangle | Inserts | Int 91° App 60° Triangle | Tools for Swiss Machines | | Min D.O.C. | 0.5 mm |

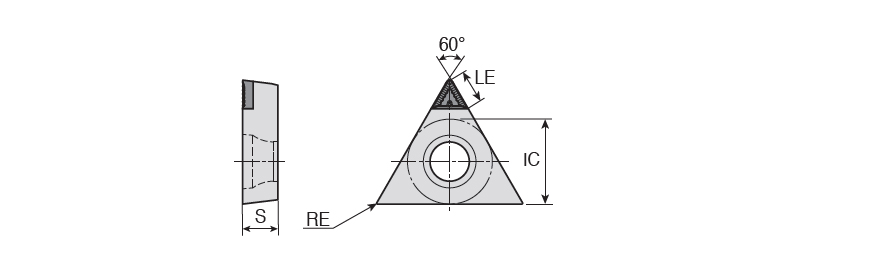

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 11 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Thickness (S) | 2.38 mm | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Cutting Edge Material | PCD | Body Material | Carbide |
| Coating | PCD | Unit | M |
Product Features
| Family Description | Positive 60° Triangular inserts with Serrated PCD cutting edge for maximum chip control & low cutting force | FamilyName | TCGT-CB(PCD) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0088
Name
Turning Indexable Inserts
FamilyName
TCGT-CB(PCD)
BrandName
Taegutec
