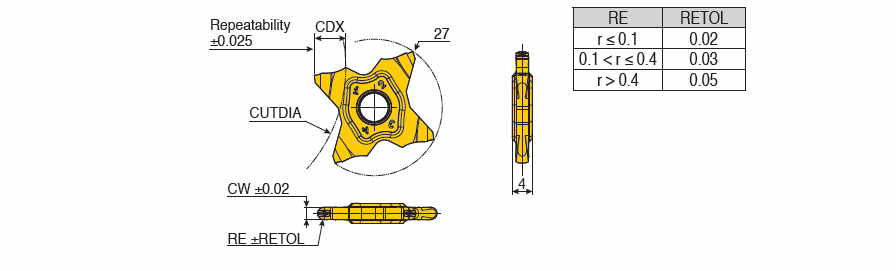

| Cutting Width (CW) | 1.57 mm | Application | | Ext. Grooving | Ext. Profiling | Inserts | |
| Corner Radius (RE) | 0.79 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 3 mm | Measurement Type | Metric |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | TT9080 | Unit | M |
| Cutting Edge Material | Carbide |
Product Features

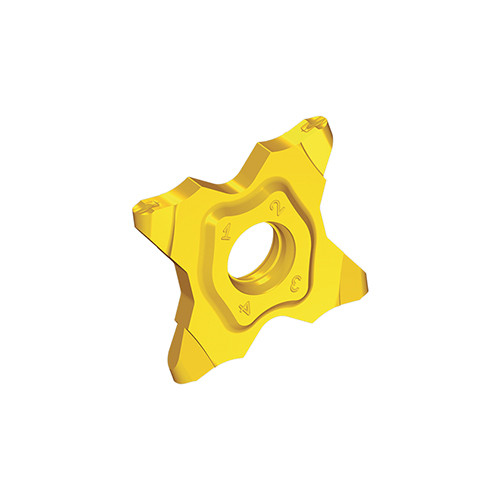

| Family Description | Full radius inserts with 4 cutting edge for Grooving of soft materials | FamilyName | TQJ 27 (Full-radius) |
| Remarks | For parting and grooving range, click on "More Info". | BrandName | TaeguTec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0153
Name
Groove/Turn Indexable Inserts
FamilyName
TQJ 27 (Full-radius)
BrandName
TaeguTec
