TQIS 14-2.00-0.10 TT9080
4 corner inserts with high positive rake angle for internal shallow grooving on small diameter
Price: Log in For Price

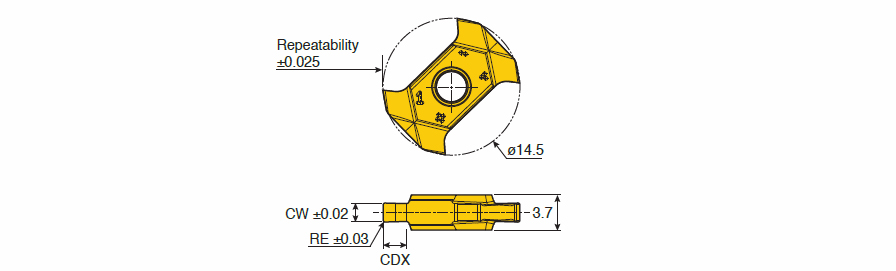

| Cutting Width (CW) | 2 mm | Application | | Inserts | Int. Groove & Turn | Int. Grooving | |
| Corner Radius (RE) | 0.1 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 2.5 mm | Measurement Type | Metric |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | TT9080 | Unit | M |
| Cutting Edge Material | Carbide |
Product Features

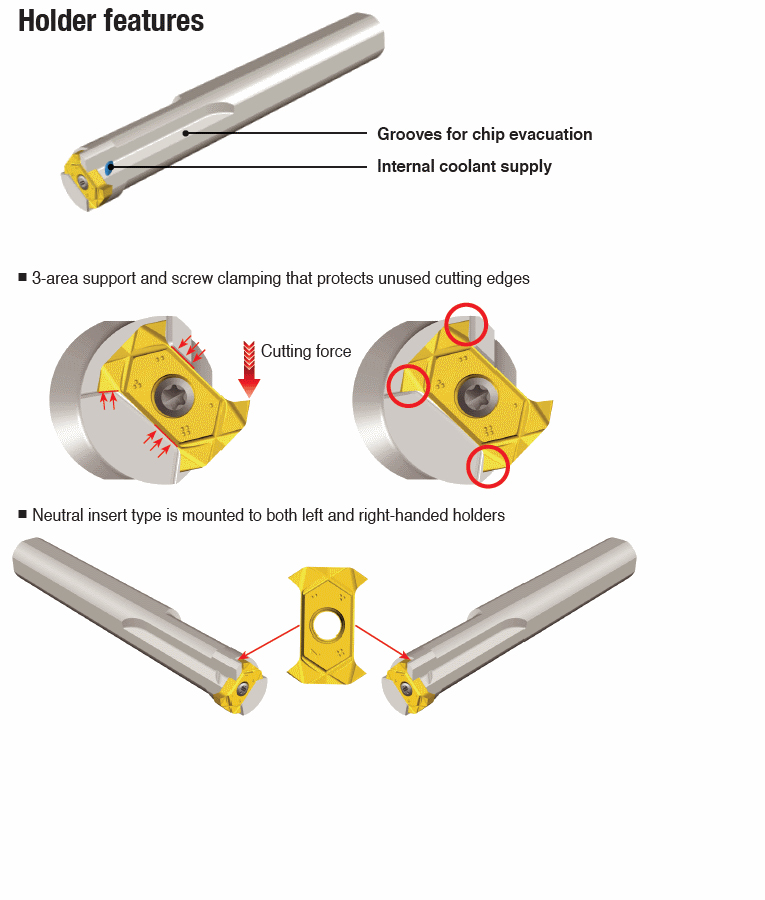

| Family Description | 4 corner inserts with high positive rake angle for internal shallow grooving on small diameter | FamilyName | TQIS 14 (QUAD-I) |
| Remarks | For parting and grooving range, click on "More Info". | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0053
Name
Groove/Turn Indexable Inserts
FamilyName
TQIS 14 (QUAD-I)
BrandName
Taegutec
