TSA 8.00-4.00 TD1020

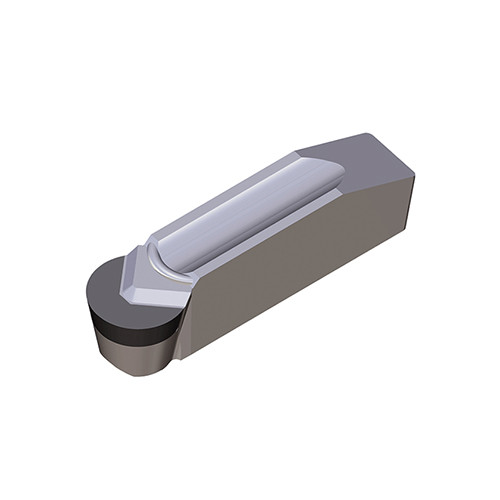

Single-ended PCD inserts for aluminum wheels machining
Price: Log in For Price

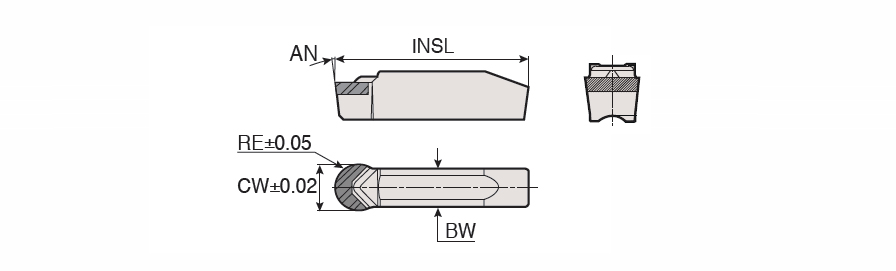

| Cutting Width (CW) | 8 mm | Application | | Ext. Profiling | Ext. Turning Aluminum Wheels | Inserts | Int. Machining Aluminum Wheels | |
| Corner Radius (RE) | 4 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Thread Pitch Maximum (TPX) | 6.4 mm | Insert Seat Size Code (SSC) | 8 |
| Insert Length (INSL) | 30 mm | Measurement Type | Metric |
| Grade | TD1020 | Body Material | Carbide |
| Cutting Edge Material | PCD | Unit | M |
Product Features
| Family Description | Single-ended PCD inserts for aluminum wheels machining | FamilyName | TSA (PCD, Full radius) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0240
Name
Groove/Turn Indexable Inserts
FamilyName
TSA (PCD, Full radius)
BrandName
Taegutec
