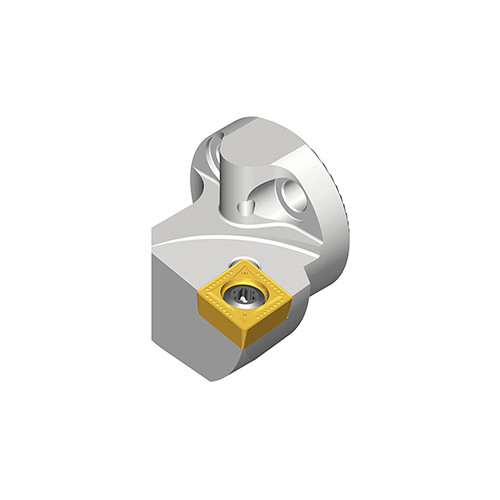

QH40-SCLCR-12
Exchangeable screw type boring heads with 80° CC.T positive inserts & 95° approach angle for anti-vibration deep boring machining
Price: Log in For Price

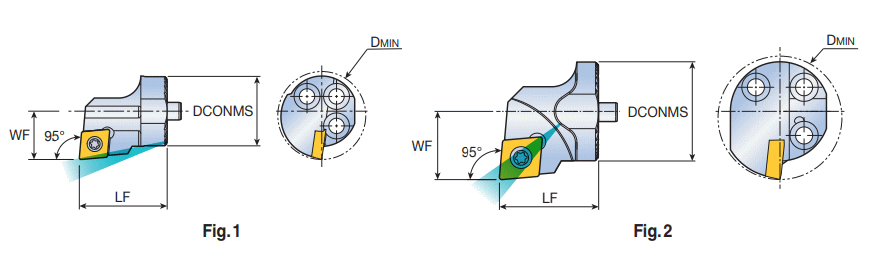

| Application | | Int 95° App 80° Diamond | | Measurement Type | Metric |
| Functional Length (LF) | 38 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Unit | M |
Product Features
| Family Description | Exchangeable screw type boring heads with 80° CC.T positive inserts & 95° approach angle for anti-vibration deep boring machining | COO | S.KOREA |
| Remarks | When applying 50mm shank, Dmin for the assembly is 60mm. When applying 60mm shank, Dmin for the assembly is 70mm. |
Shipping Info
Weight per item
0.2250
