HSB 2CBN 2010-2.5 TB7015
Solid CBN ball end mills of small dia with helix cutting edge for machining of high-hardness materials
Price: Log in For Price

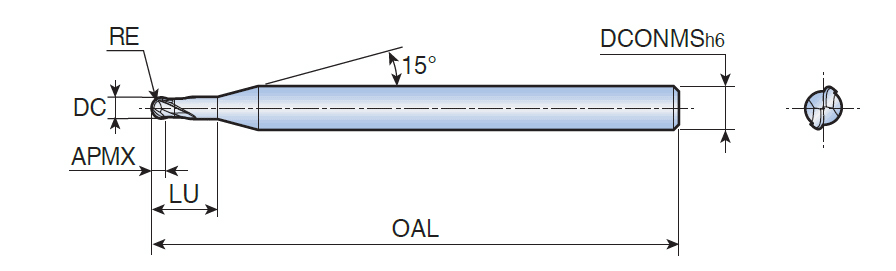

| Cutting Diameter (DC) | 1 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Usable Length (LU) | 2.5 mm |
| Depth of Cut Maximum (APMX) | 0.7 mm | Applicable Material | | Cast Iron | Hard Materials | |
| Overall Length (OAL) | 48 mm | Application | | Profiling | Solid Carbide End Mills | |
| Cutting Edge Material | PCBN | Corner Radius (RE) | 0.5 mm |
| Coating | Uncoated | Grade | TB7015 |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round | Unit | M |
Product Features
| Family Description | Solid CBN ball end mills of small dia with helix cutting edge for machining of high-hardness materials | FamilyName | HSB 2CBN |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0115
Name
Square & Corner Radius End Mills
FamilyName
HSB 2CBN
BrandName
Taegutec
