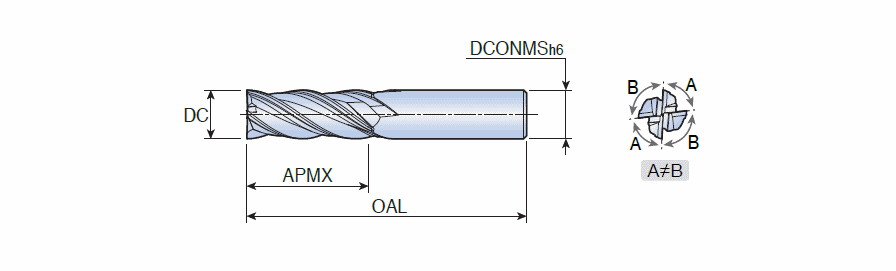

| Cutting Diameter (DC) | 4 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 6 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 12 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Overall Length (OAL) | 57 mm | Application | | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | |
| Cutting Edge Material | Carbide | Grade | TT5520 |
| Coating | AlCrN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 0 Degrees | Unit | M |
Product Features
| Family Description | 4 flute, flat type solid carbide end mills with different helix and unequal spacing for machining of steels including alloy,carbon, mold as well as stainless | FamilyName | UHP 4 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0215
Name
Square & Corner Radius End Mills
FamilyName
UHP 4
BrandName
Taegutec
