HSR 2008 020 040 TT5505

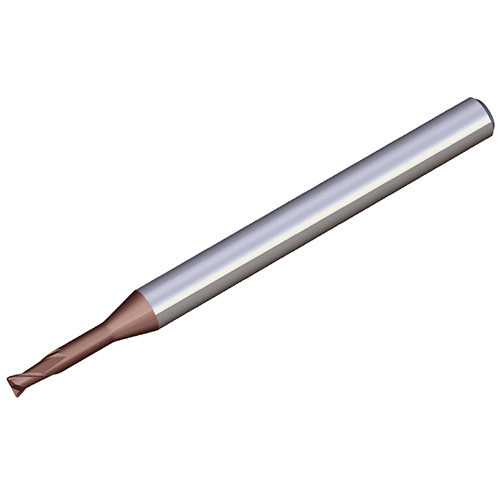

High precision solid carbide end mills of corner R type with long neck & 2 flute for high speed machining of hardened steel & pre-hardened steel
Price: Log in For Price

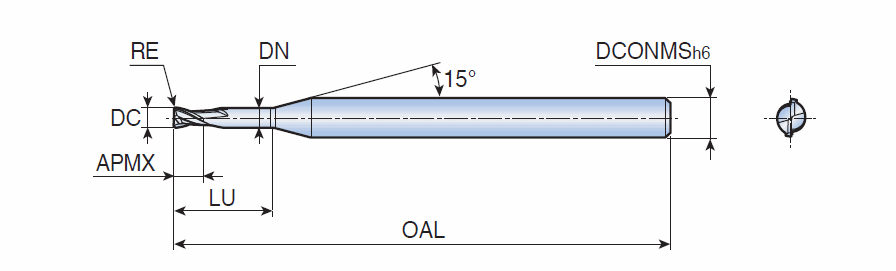

| Cutting Diameter (DC) | 0.8 mm | Usable Length (LU) | 4 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Applicable Material | | Steel | Hard Materials | |
| Depth of Cut Maximum (APMX) | 1.2 mm | Application | | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | |
| Overall Length (OAL) | 45 mm | Corner Radius (RE) | 0.2 mm |
| Cutting Edge Material | Carbide | Grade | TT5505 |
| Coating | AlTiN | Neck Diameter (DN) | 0.75 |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round | Unit | M |
| End Shape | Corner Radius |
Product Features
| Family Description | High precision solid carbide end mills of corner R type with long neck & 2 flute for high speed machining of hardened steel & pre-hardened steel | FamilyName | HSR 2 (0.3-4.0) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0100
Name
Square & Corner Radius End Mills
FamilyName
HSR 2 (0.3-4.0)
BrandName
Taegutec
