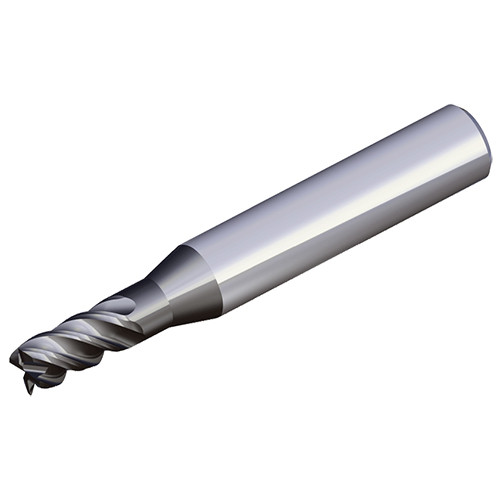

SED 4060U TT5515
4 Flute solid carbide end mills for difficult-to-cut materials with flat type & unequal spaced cutting edges in less vibration and high productivity
Price: Log in For Price

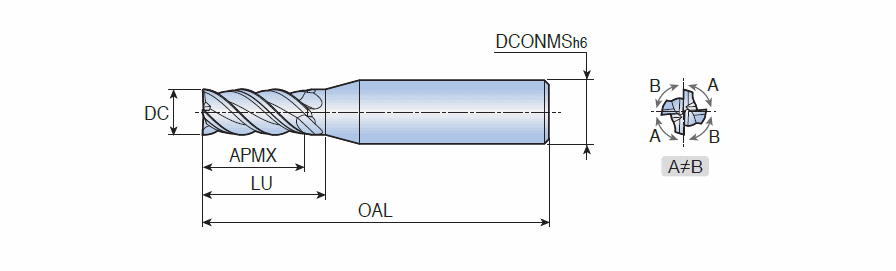

| Cutting Diameter (DC) | 6 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | - |
| Depth of Cut Maximum (APMX) | 15 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 57 mm | Application | | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | |
| Cutting Edge Material | Carbide | Grade | TT5515 |
| Coating | AlTiCrN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 45 Degrees | Unit | M |
| Shank Type | Round |
Product Features
| Family Description | 4 Flute solid carbide end mills for difficult-to-cut materials with flat type & unequal spaced cutting edges in less vibration and high productivity | FamilyName | SED 4...U |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0250
Name
Square & Corner Radius End Mills
FamilyName
SED 4...U
BrandName
Taegutec
