S32T SDZCR 11

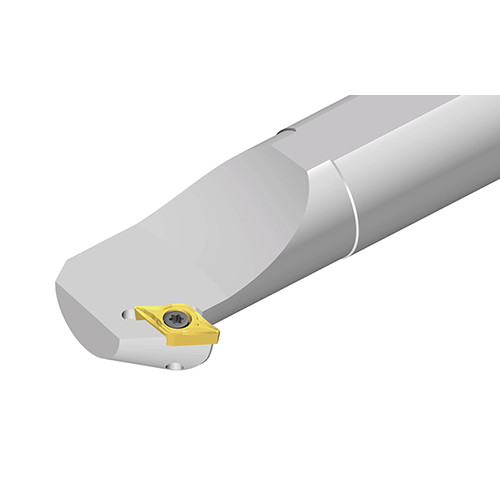

Screw type back boring bars with 93° approach angle for positive 55° Rhombic inserts of 7° clearance angle
Price: Log in For Price

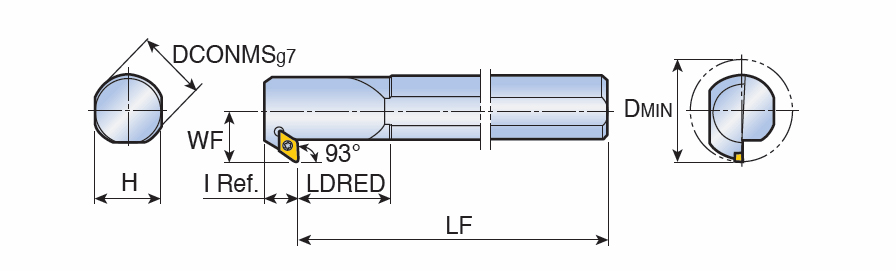

| Connection Diameter Machine Side (DCONMS) | 32 mm | Application | | Int 93° App 70° Diamond | Int 93° App Back 55° Diamond | |
| Functional Length (LF) | 300 mm | Body Material | Steel |
| Reduced Body Diameter Length (LDRED) | 34 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 40 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Screw type back boring bars with 93° approach angle for positive 55° Rhombic inserts of 7° clearance angle | FamilyName | S-SDZCR/L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
1.9250
Name
Indexable Internal Turning Tools
FamilyName
S-SDZCR/L
BrandName
Taegutec
