3P TES D100-78-40R-15-4F

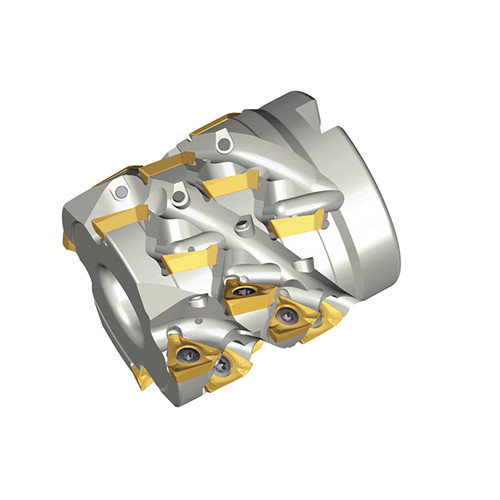

Extended flute shell mills with 3PKT 15 inserts of positive 3 helical cutting edges
Price: Log in For Price
| Application | | Shouldering | Slotting | | Number of Teeth | 32 |

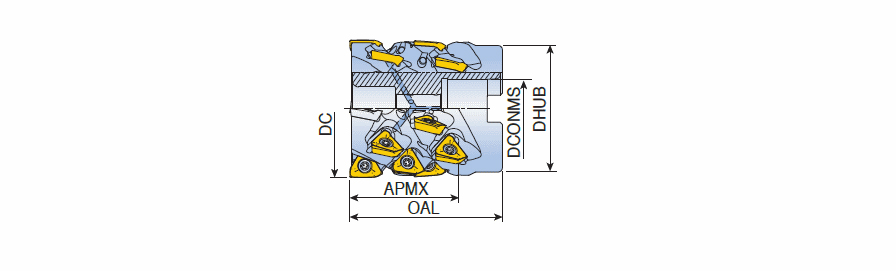

| Depth of Cut Maximum (APMX) | 78 mm | Master Insert Identification (MIID) | 3PKT 150508R-M |
| Cutting Diameter (DC) | 100 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Body Material | Steel |
| Flute Count (NOF) | 4 | Unit | M |
| Overall Length (OAL) | 110 mm |
Product Features
| Family Description | Extended flute shell mills with 3PKT 15 inserts of positive 3 helical cutting edges | FamilyName | 3P TES-15 |
| Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
5.1950
Name
Shell Mills
FamilyName
3P TES-15
BrandName
Taegutec
