THFN 080-S05

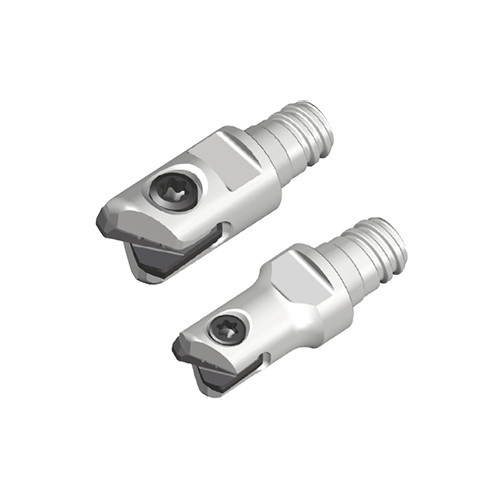

High feed modular end mills with MAXI-RUSH adaption & Small high feed HFN inserts for miniature components
Price: Log in For Price

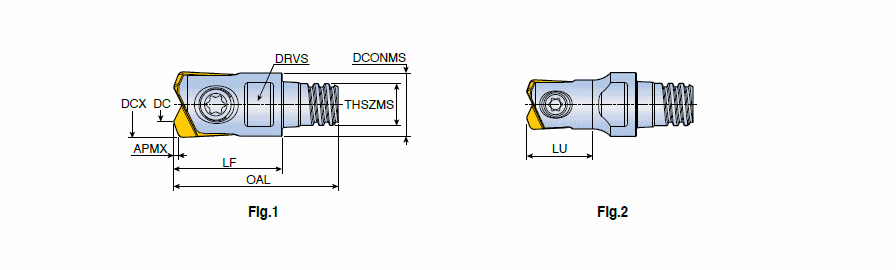

| Cutting Diameter (DC/DCX) | 8 mm | Master Insert Identification (MIID) | HFN 080-M |
| Cutting Diameter (DC) | 4 mm | Functional Length (LF) | 13 mm |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | - |
| Depth of Cut Maximum (APMX) | 0.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 19.7 mm | Body Material | Steel |
| Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | | Cutting Diameter Maximum (DCX) | 8 mm |
| Connection Diameter Machine Side (DCONMS) | 7.6 mm | Unit | M |
Product Features
| Family Description | High feed modular end mills with MAXI-RUSH adaption & Small high feed HFN inserts for miniature components | FamilyName | THFN-S |
| Remarks | Matched with MAXI RUSH holder | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0750
Name
Indexable End Mills
FamilyName
THFN-S
BrandName
Taegutec
