4T-TEF D40-43-W40-09

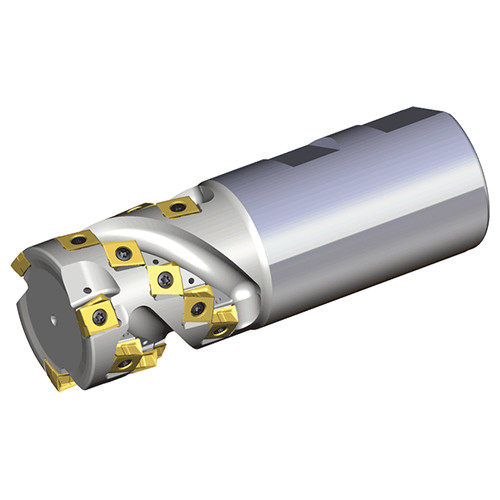

Extended flute end mills with strong tangential type 4 cutting edge LPK(H)U inserts
Price: Log in For Price

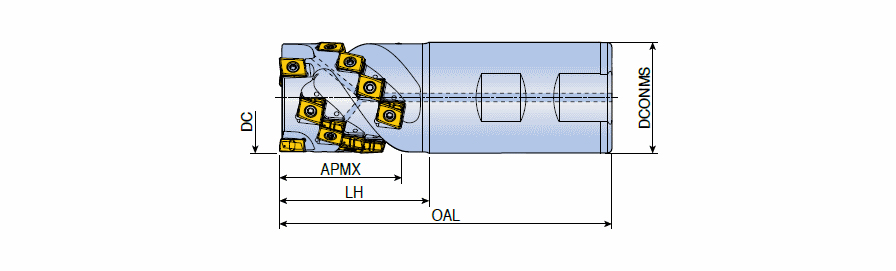

| Cutting Diameter (DC/DCX) | 40 mm | Connection Diameter Machine Side (DCONMS) | 40 mm |
| Cutting Diameter (DC) | 40 mm | Master Insert Identification (MIID) | LPHU 090404 PNR-M |
| Cutting Item Count (CICT) | 3 | Head Length (LH) | 54 mm |
| Depth of Cut Maximum (APMX) | 43 mm | Measurement Type | Metric |
| Overall Length (OAL) | 125 mm | Body Material | Steel |
| Shank Type | Weldon | Unit | M |
| Application | | Shouldering | Slotting | Trochoidal Milling | |
Product Features
| Family Description | Extended flute end mills with strong tangential type 4 cutting edge LPK(H)U inserts | FamilyName | 4T-TEF-09 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
1.1200
Name
Indexable End Mills
FamilyName
4T-TEF-09
BrandName
Taegutec
