TEBN 320-20-06CH-L80

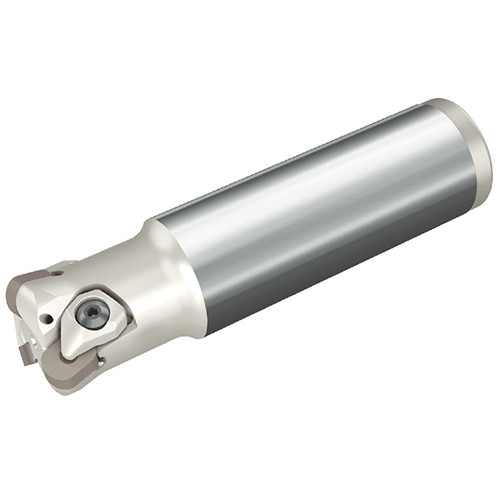

CERAMICSFEED end mills with Ceramic inserts four cutting edges for high speed machining of super alloys
Price: Log in For Price

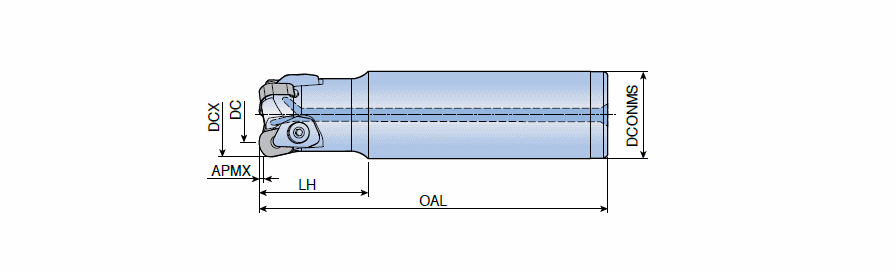

| Cutting Diameter (DC/DCX) | 20 mm | Connection Diameter Machine Side (DCONMS) | 20 mm |
| Cutting Diameter (DC) | 12.5 mm | Master Insert Identification (MIID) | BNGX 0603 CH-E04 |
| Cutting Item Count (CICT) | 3 | Head Length (LH) | 25 mm |
| Depth of Cut Maximum (APMX) | 1 mm | Measurement Type | Metric |
| Overall Length (OAL) | 80 mm | Body Material | Steel |
| Shank Type | Round | Cutting Diameter Maximum (DCX) | 20 mm |
| Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | Shouldering | Slotting | | Unit | M |
Product Features
| Family Description | CERAMICSFEED end mills with Ceramic inserts four cutting edges for high speed machining of super alloys | FamilyName | TEBN-06CH |
| Remarks | Use only air(coolant is prohibited) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.2000
Name
Indexable End Mills
FamilyName
TEBN-06CH
BrandName
Taegutec
