3P TEF D40-42-W32-10

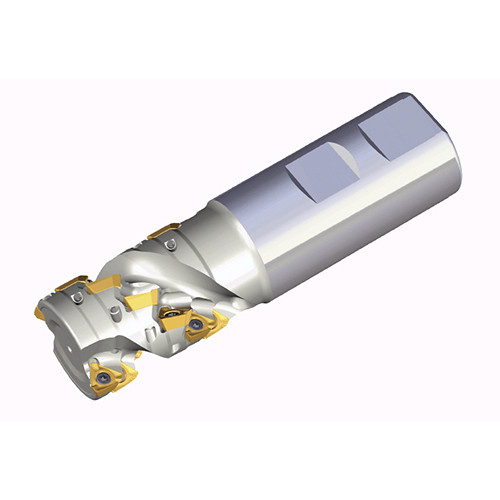

Extended flute end mills with 3PKT 10 inserts of positive 3 helical cutting edges
Price: Log in For Price

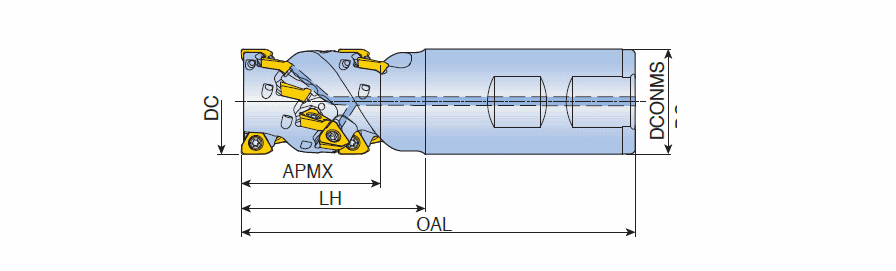

| Cutting Diameter (DC/DCX) | 40 mm | Connection Diameter Machine Side (DCONMS) | 32 mm |
| Cutting Diameter (DC) | 40 mm | Master Insert Identification (MIID) | 3PKT 100408R-M |
| Cutting Item Count (CICT) | 21 | Head Length (LH) | 56 mm |
| Depth of Cut Maximum (APMX) | 42 mm | Flute Count (NOF) | 3 |
| Overall Length (OAL) | 130 mm | Measurement Type | Metric |
| Shank Type | Weldon | Body Material | Steel |
| Application | | Shouldering | Slotting | | Unit | M |
Product Features
| Family Description | Extended flute end mills with 3PKT 10 inserts of positive 3 helical cutting edges | FamilyName | 3P TEF-10 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.8400
Name
Indexable End Mills
FamilyName
3P TEF-10
BrandName
Taegutec
