8D-TF90-550-22R-10

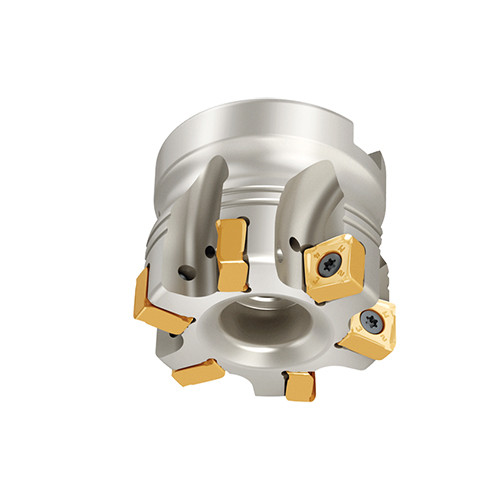

90° Face mills with 8 cutting edges of double-sided Square inserts SQK(H)U 10 for general milling
Price: Log in For Price

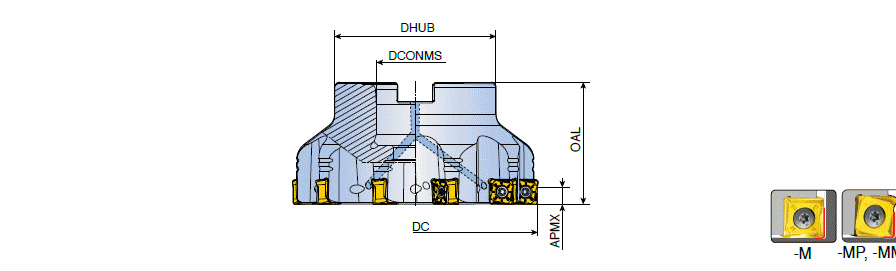

| Cutting Diameter (DC/DCX) | 50 mm | Hub Diameter (DHUB) | 45 mm |
| Cutting Diameter (DC) | 50 mm | Master Insert Identification (MIID) | SQKU 100408 PNR-M |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 7 mm | Application | | Facing | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 7 mm | Unit | M |
Product Features
| Family Description | 90° Face mills with 8 cutting edges of double-sided Square inserts SQK(H)U 10 for general milling | FamilyName | 8D-TF90-R-10 |
| Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) When applying SQHU insert, APMX is 6.5 mm. | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.4450
Name
Indexable Face Mills
FamilyName
8D-TF90-R-10
BrandName
Taegutec
