SCRM90TN 10160-40R-18

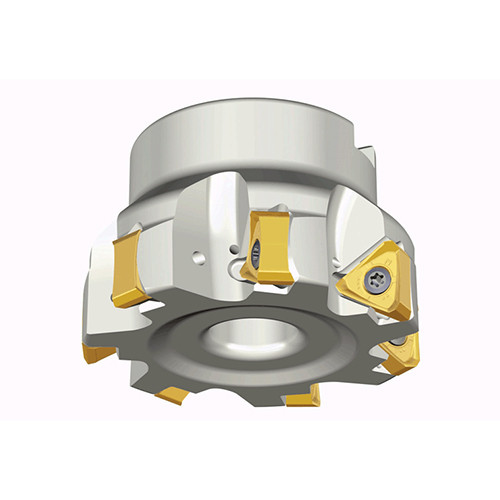

90° Face mills with six helical cutting edges of double- sided TNMX 18 inserts
Price: Log in For Price

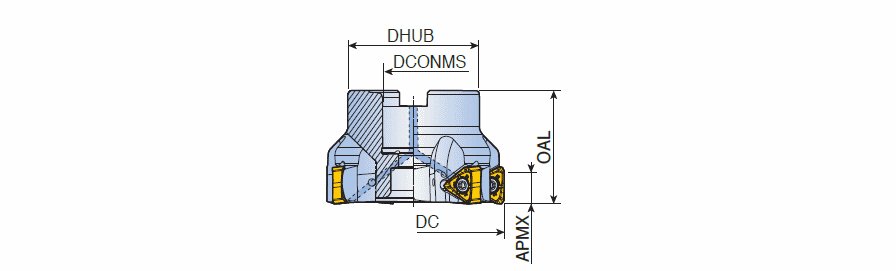

| Cutting Diameter (DC) | 160 mm | Master Insert Identification (MIID) | TNMX 1806 PNTR-M |
| Cutting Item Count (CICT) | 10 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 13 mm | Application | | Facing | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Unit | M |
Product Features
| Family Description | 90° Face mills with six helical cutting edges of double- sided TNMX 18 inserts | FamilyName | SCRM90TN-R-18 |
| Remarks | Ordering example: Metric cutter SCRM90TN 580 27R 18, Inch bore cutter SCRM90TN 580 25.4R 18 Mounting bolts supplied do not have coolant through facility. If the application demands a coolant through cutter, the mounting bolt with coolant through holes needs to be ordered separately | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
5.3700
Name
Indexable Face Mills
FamilyName
SCRM90TN-R-18
BrandName
Taegutec
