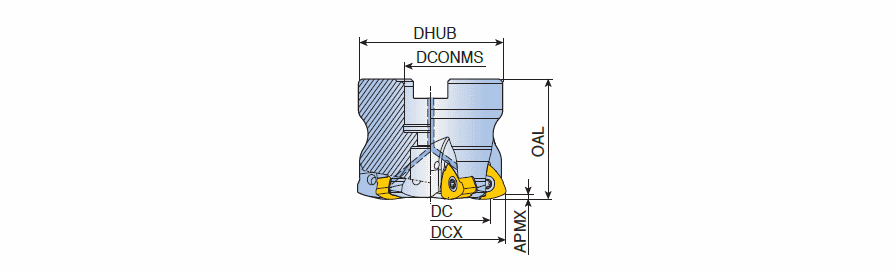

| Cutting Diameter (DC/DCX) | 31 mm | Master Insert Identification (MIID) | BLMP 1306R-M |
| Cutting Diameter (DC) | 50 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 4 | Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | |
| Depth of Cut Maximum (APMX) | 2 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Unit | M |
| Overall Length (OAL) | 40 mm |
Product Features

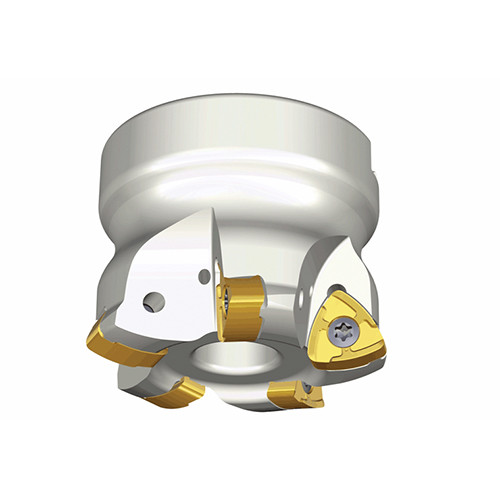

| Family Description | High feed face mills with BLMP 13 inserts of 6 cutting edges in max. ap 2.0 mm | FamilyName | TFMBL-R-13 |
| Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.8800
Name
Indexable Face Mills
FamilyName
TFMBL-R-13
BrandName
Taegutec
