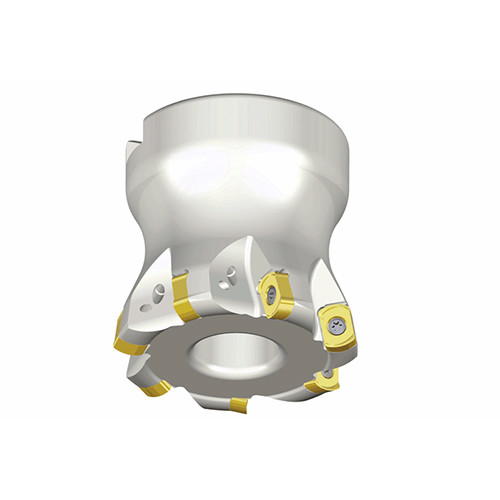

TFMBL 440-16R-09
High feed mills with BLMP 09 inserts of 4 cutting edges in maximum depth of cut ap 1.5 mm
Price: Log in For Price
| Cutting Diameter (DC/DCX) | 29.6 mm | Master Insert Identification (MIID) | BLMP 0904R-M |
| Cutting Diameter (DC) | 40 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 4 | Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | |
| Depth of Cut Maximum (APMX) | 1.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Unit | M |
| Overall Length (OAL) | 40 mm |
Product Features
| Family Description | High feed mills with BLMP 09 inserts of 4 cutting edges in maximum depth of cut ap 1.5 mm | FamilyName | TFMBL-R-09 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.8100
Name
Indexable Face Mills
FamilyName
TFMBL-R-09
BrandName
Taegutec
