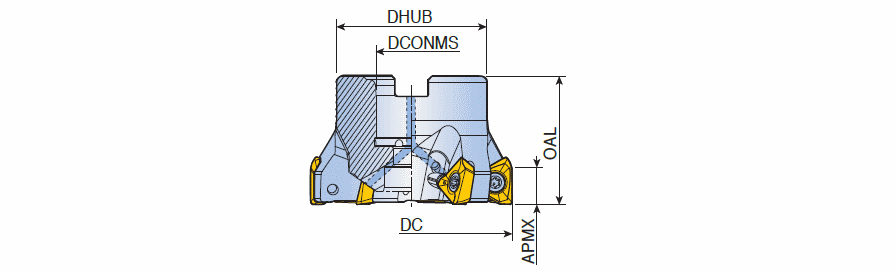

| Cutting Diameter (DC/DCX) | 80 mm | Hub Diameter (DHUB) | 70 mm |
| Cutting Diameter (DC) | 80 mm | Master Insert Identification (MIID) | 3PKT 150508R-M |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 11 mm | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 25.4 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Unit | M |
Product Features

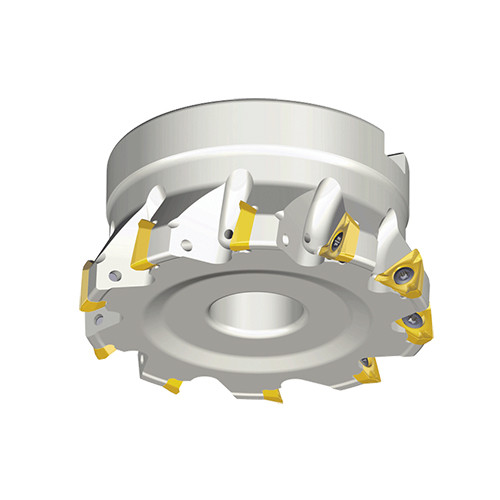

| Family Description | 90° Face mills with high positive three helical cutting edges inserts of 3PK(H)T 15 & inch bores | FamilyName | 3P TF90-R-15 (INCH BORE) |
| Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | TaeguTec |
| COO | S.KOREA |
Shipping Info
Weight per item
1.7000
Name
Indexable Face Mills
FamilyName
3P TF90-R-15 (INCH BORE)
BrandName
TaeguTec
