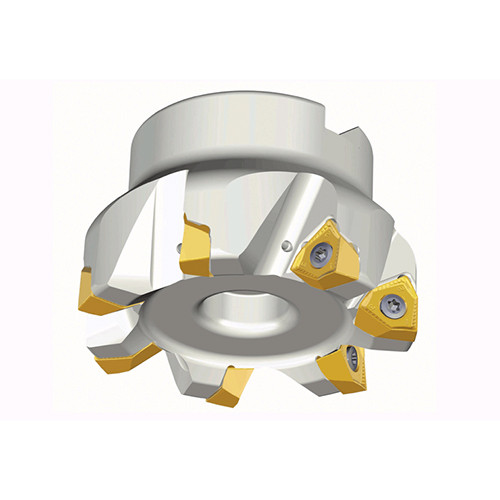

6N TF90-663-22R-06
90° Face mills with positive six cutting edges of double sided 6NGU 06/09 inserts for cost effective machining
Price: Log in For Price

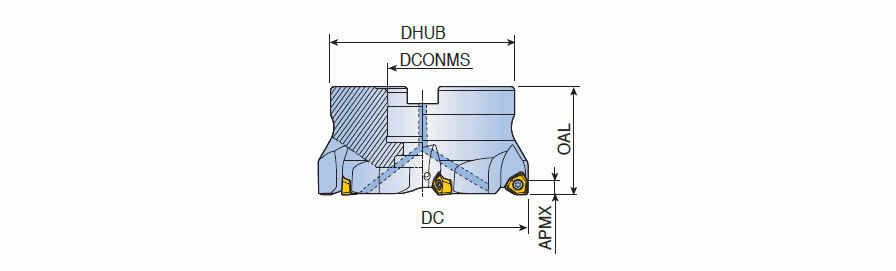

| Cutting Diameter (DC) | 63 mm | Master Insert Identification (MIID) | 6NGU 060404R-M |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 6.2 mm | Application | | Facing | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40 mm | Unit | M |
Product Features
| Family Description | 90° Face mills with positive six cutting edges of double sided 6NGU 06/09 inserts for cost effective machining | FamilyName | 6N TF90-R-06/09 |
| Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.9850
Name
Indexable Face Mills
FamilyName
6N TF90-R-06/09
BrandName
Taegutec
