TFM88SN 780-27R-13

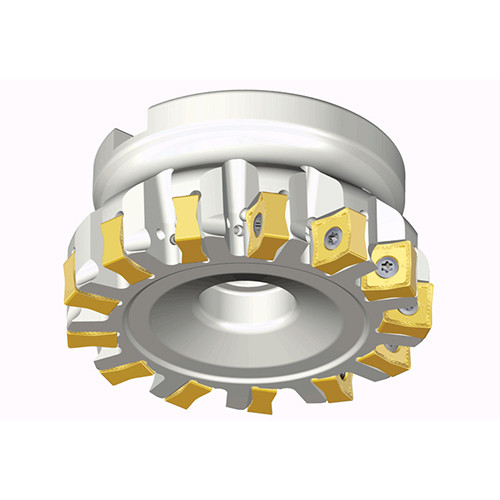

88° Face mills with 8 cutting edges of double-sided square inserts SN 13 for milling near to shoulders
Price: Log in For Price

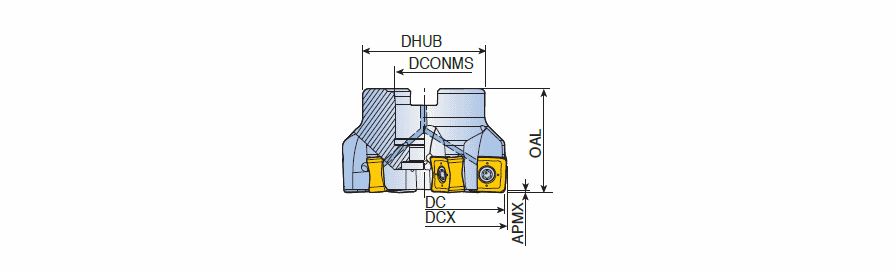

| Cutting Diameter (DC) | 81.2 mm | Master Insert Identification (MIID) | SNGX 1306 ZN-M |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 12 mm | Application | | Facing | Shouldering | |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Unit | M |
Product Features
| Family Description | 88° Face mills with 8 cutting edges of double-sided square inserts SN 13 for milling near to shoulders | FamilyName | TFM88SN-R-13 |
| Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
1.7050
Name
Indexable Face Mills
FamilyName
TFM88SN-R-13
BrandName
Taegutec
