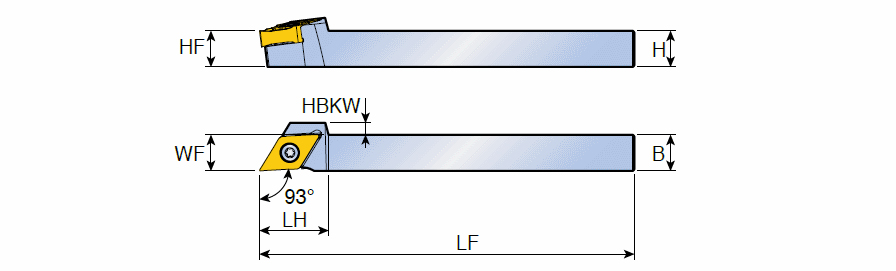

| Shank Height (H) | 20 mm | Application | | Ext 93° App 55°Diamond | Tools for Swiss Machines | |
| Shank Width (B) | 20 mm | Body Material | Steel |
| Head Length (LH) | 23 mm | Measurement Type | Metric |
| Functional Width (WF) | 20 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features

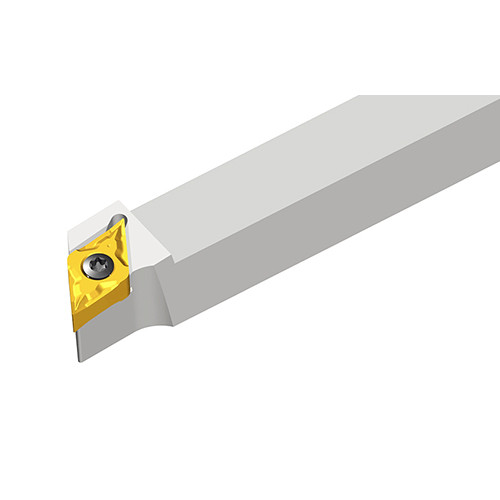

| Family Description | RHINOTURN screw type holders with 93° approach angle & DN.G 1305 negative inserts for Swiss type automatic lathes | FamilyName | SDJNR-RS (RHINO-S) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.4000
Name
General Indexable Turning Tools
FamilyName
SDJNR-RS (RHINO-S)
BrandName
Taegutec
