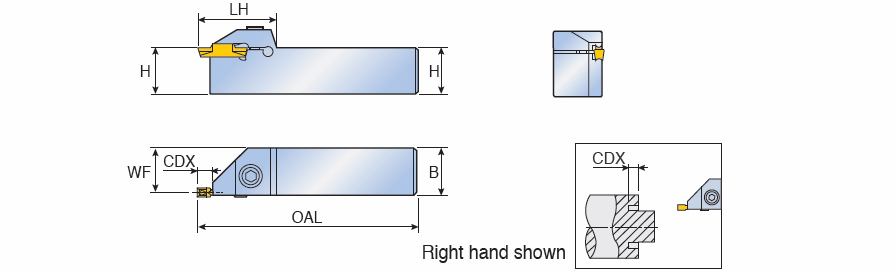

| Cutting Depth Maximum (CDX) | 4.8 mm | Overall Length (OAL) | 150 mm |
| Shank Height (H) | 25 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Shank Width (B) | 25 mm | Body Material | Steel |
| Functional Width (WF) | 23.5 mm | Measurement Type | Metric |
| Head Length (LH) | 33 mm | Unit | M |
Product Features
| Family Description | External holders for shallow axial and radial grooving | FamilyName | TGFR/L |
| Remarks | External turning & grooving is available depending on the insert type | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.7500
Name

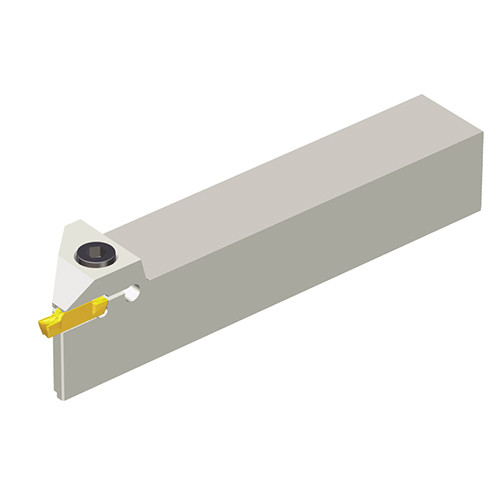

Groove/Turn Indexable Holders
FamilyName
TGFR/L
BrandName
Taegutec
