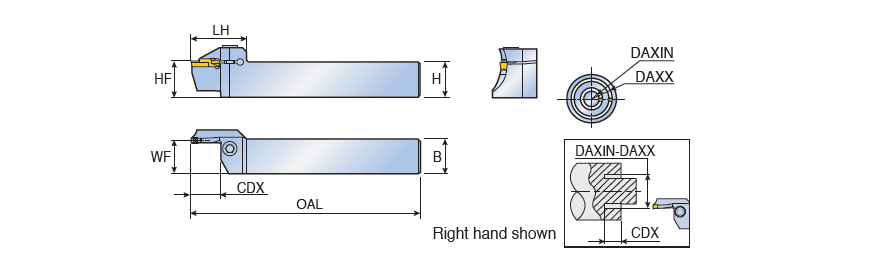

| Shank Width (B) | 25 mm | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Shank Height (H) | 25 mm | Head Length (LH) | 39 mm |
| Cutting Depth Maximum (CDX) | 20 mm | Master Insert Identification (MIID) | TDXU 4E-0.4 |
| Axial Groove Outside Diameter Maximum (DAXX) | 120 mm | Body Material | Steel |
| Axial Groove Outside Diameter Minimum (DAXN) | 62 mm | Measurement Type | Metric |
| Overall Length (OAL) | 150 mm | Unit | M |
Product Features
| Family Description | External holders for face grooving & turning along shaft | FamilyName | TTFR/L 20/25-RN |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.7200
Name

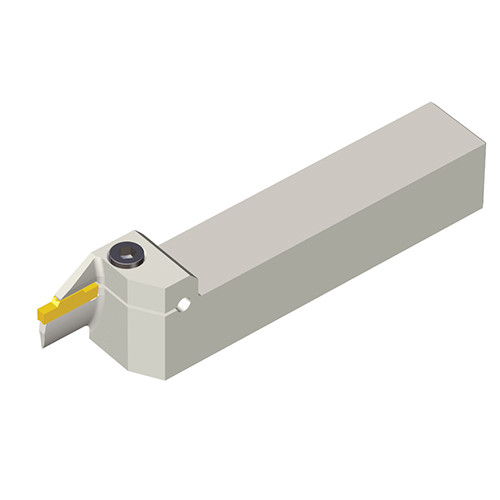

Face Groove/Turn Indexable Holders
FamilyName
TTFR/L 20/25-RN
BrandName
Taegutec
